PILOT 560

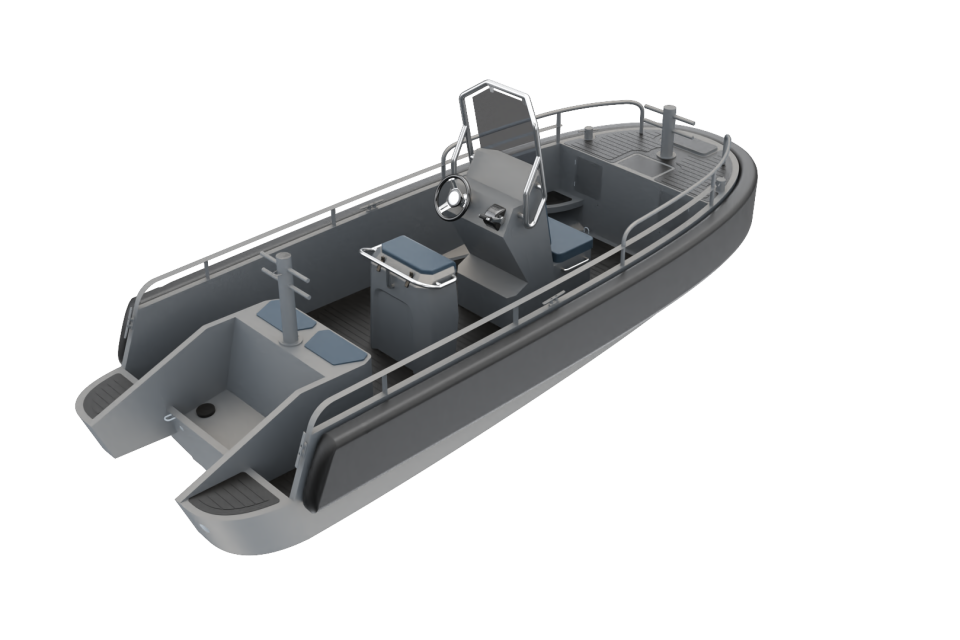

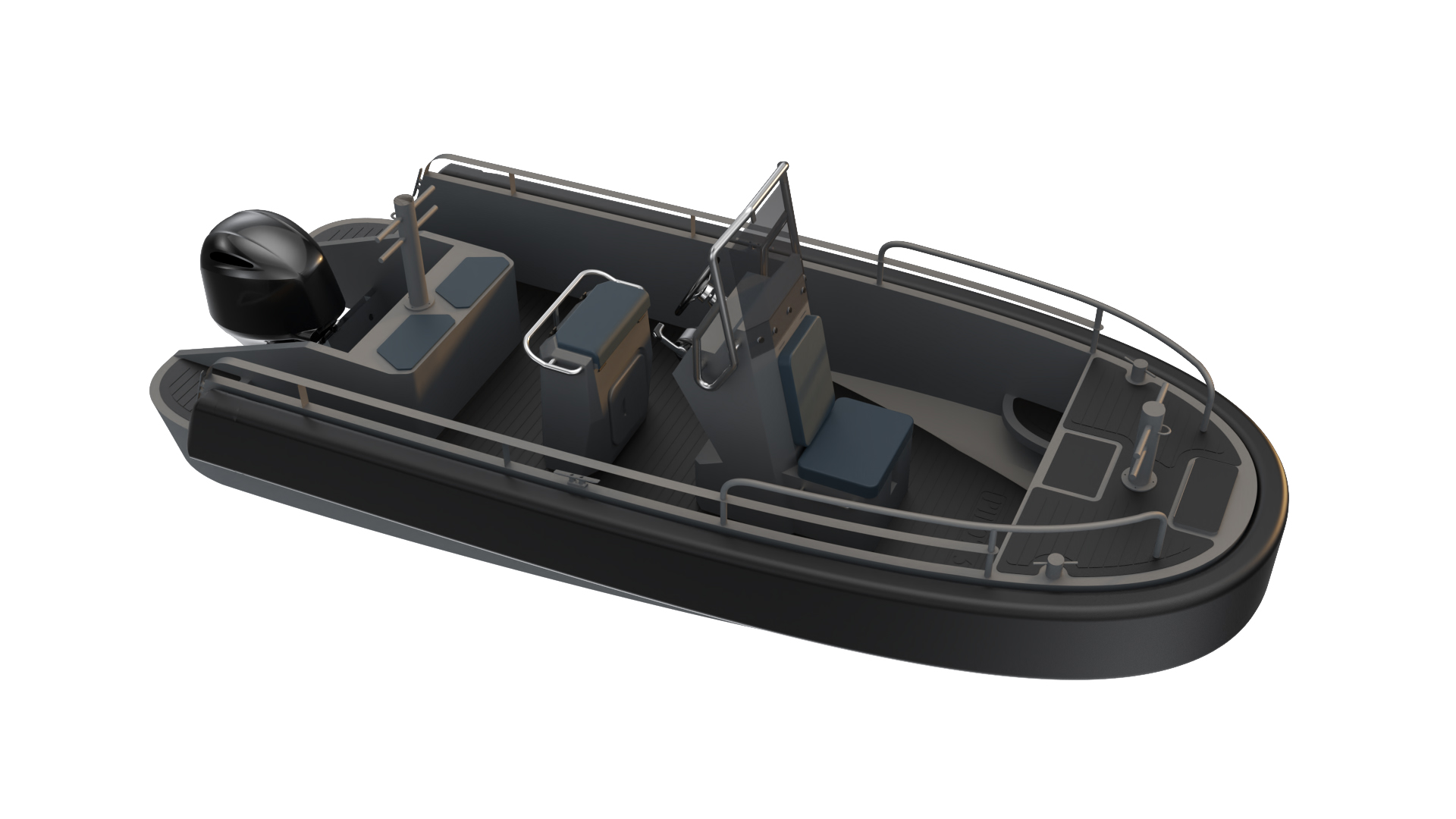

The Pilot560 is a 3D Tender harbor service boat, designed by our architect Samy Boubezari.

The Pilot560 is the specialist in harbour manoeuvring assistance for boats of all sizes. Its compact design and shallow draft allow it to maneuver in the most difficult to access areas.

The boat is extremely robust with its 4mm thick H5083 aluminum hull and dense 3mm internal structure. the 15 cm Poyruea reinforcement all around the hull provides maximum protection in case of contact, without marking the boats.

The structural plans have been validated by the classification society Bureau Veritas.

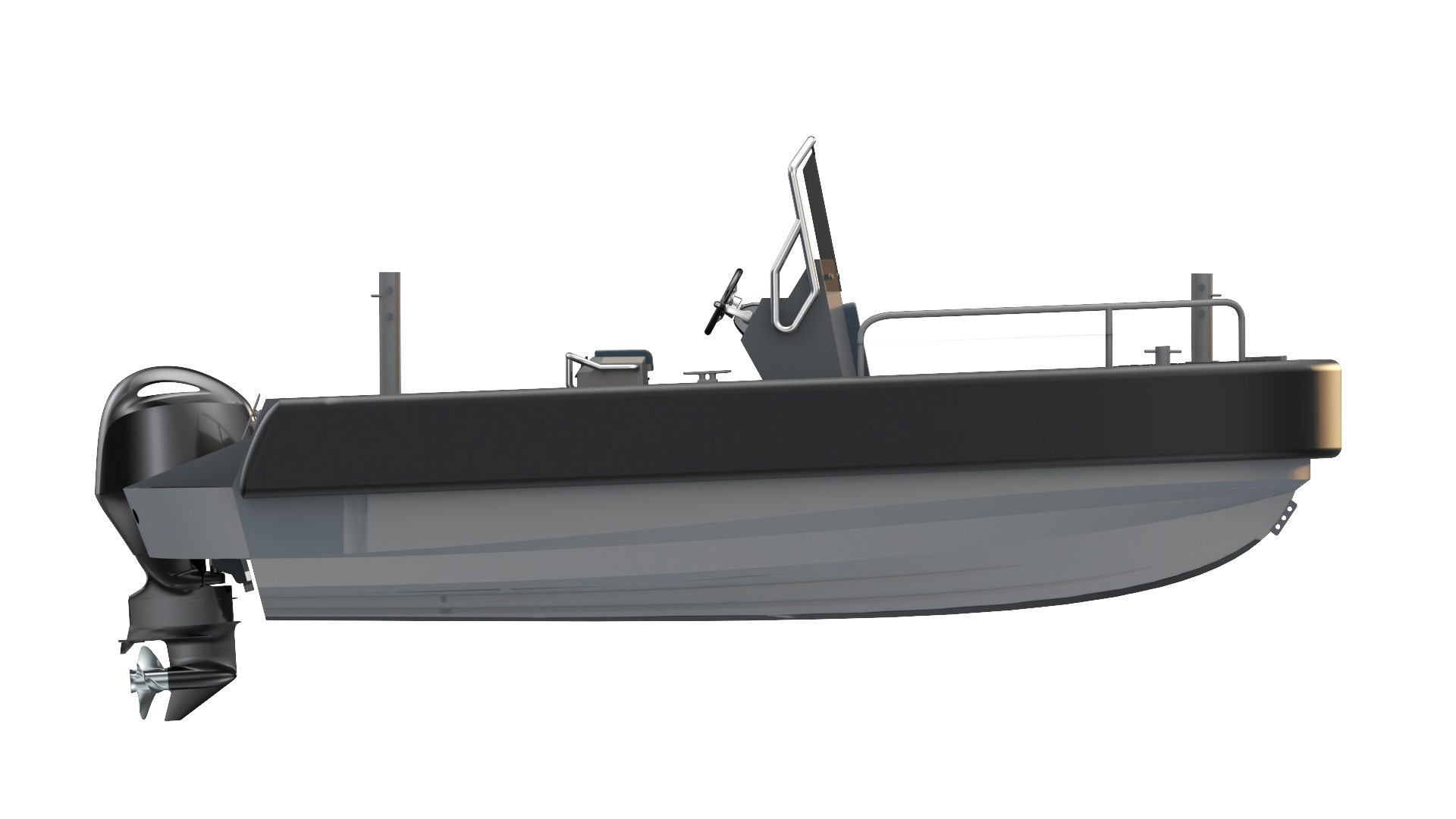

It has a rounded bow, called “marotte”, which allows it to perform its function as a pusher boat. The good width/length ratio and the design of the hull, give it excellent stability and maneuverability at sea.

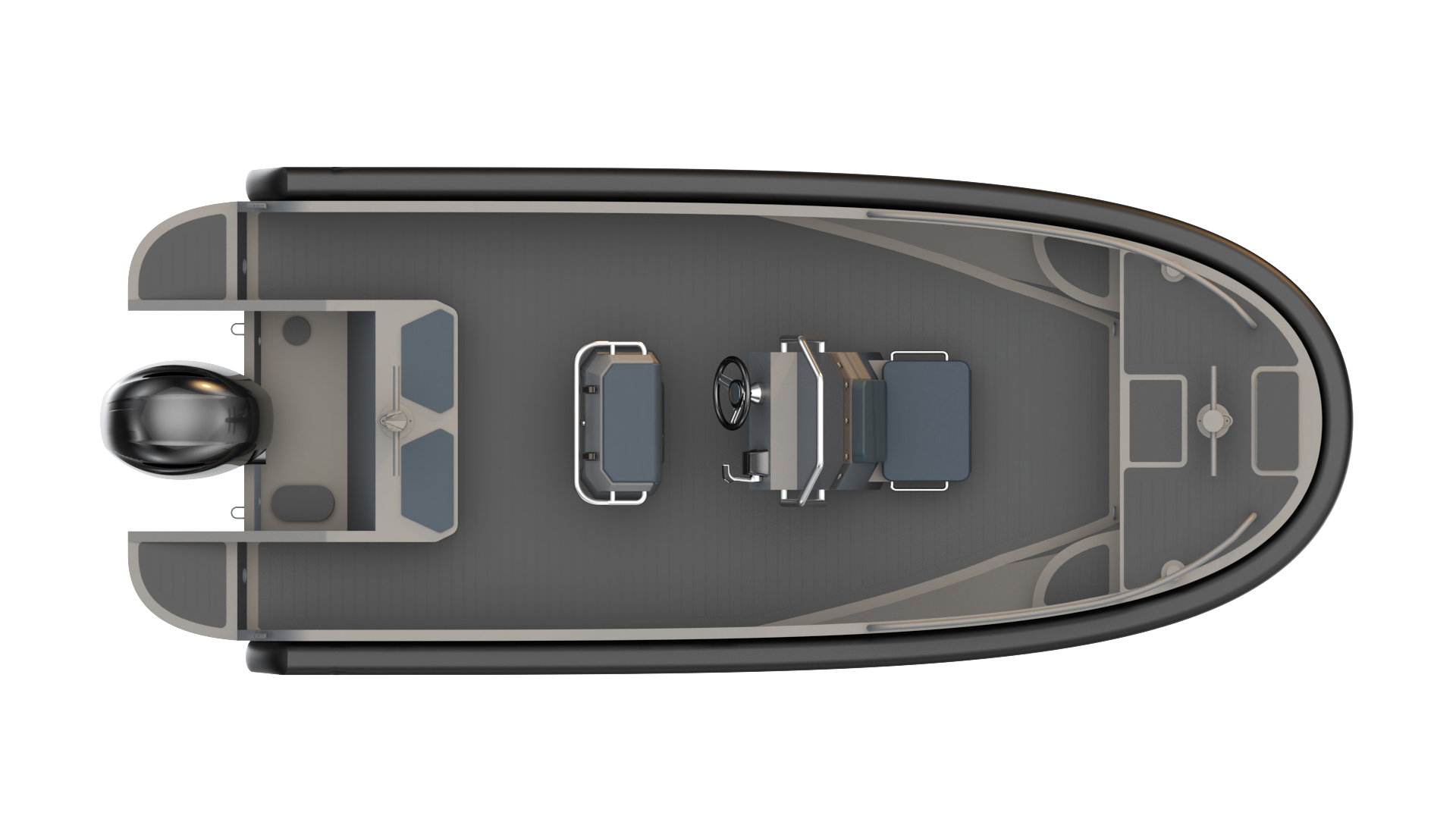

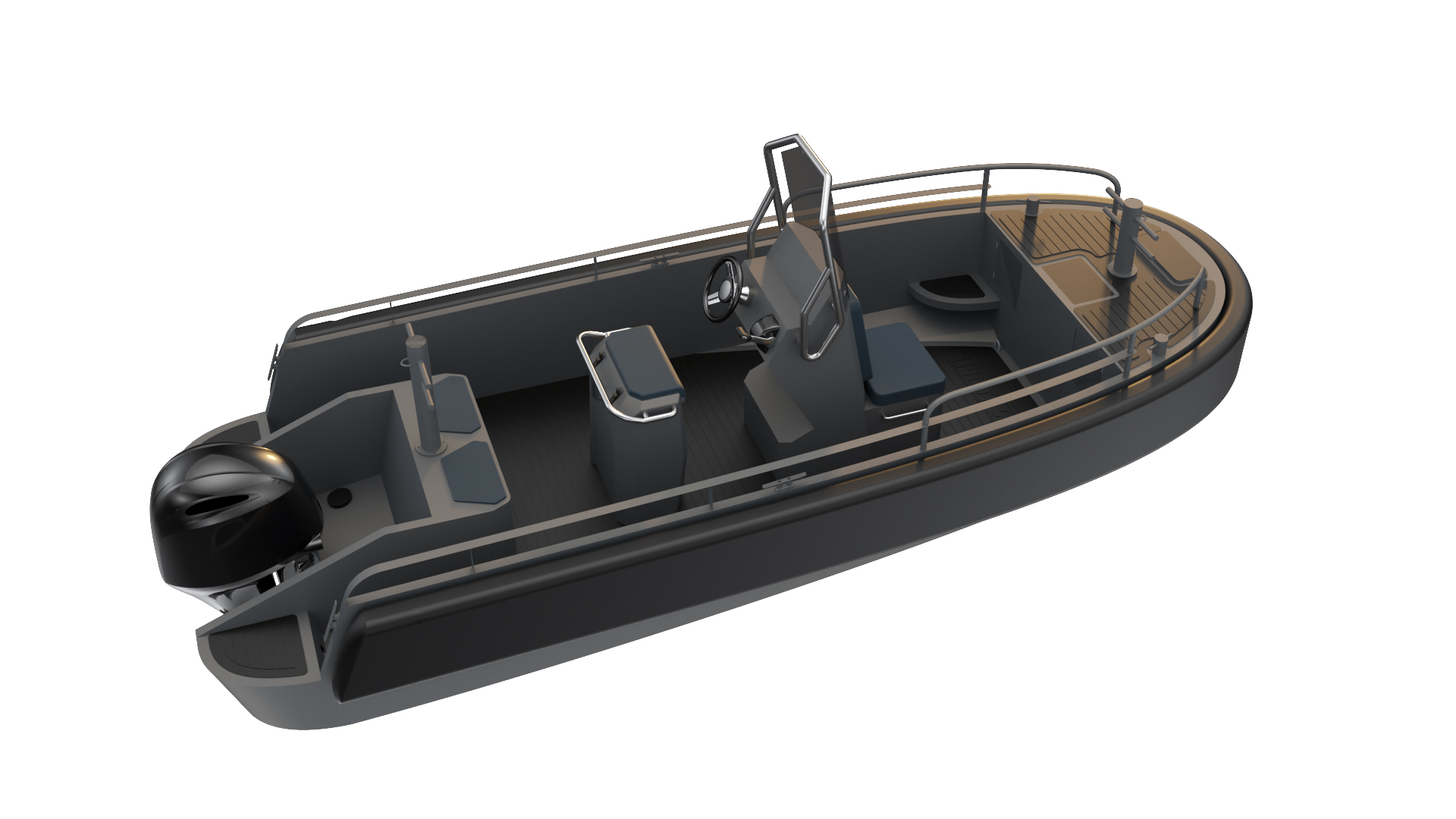

The Pilot 560 is equipped with two tow masts, one forward and one aft directly attached to the boat structure. It is also equipped with a steering console with storage box and front seat, a comfortable bolster seat with double storage, six mooring cleats (two forward, two amidships and two aft ), anti-slip EVA coating, two large aft lockers with seats, two large front lockers, a 90L fuel tank, a large working platform at the bow of the boat and an anchor locker .

In order to secure the boat, handrails are present all around the Pilot 560. This boat is self-draining.

On request, the shell of the Pilot 560 can be declined in other colors, and the fenders in white.
